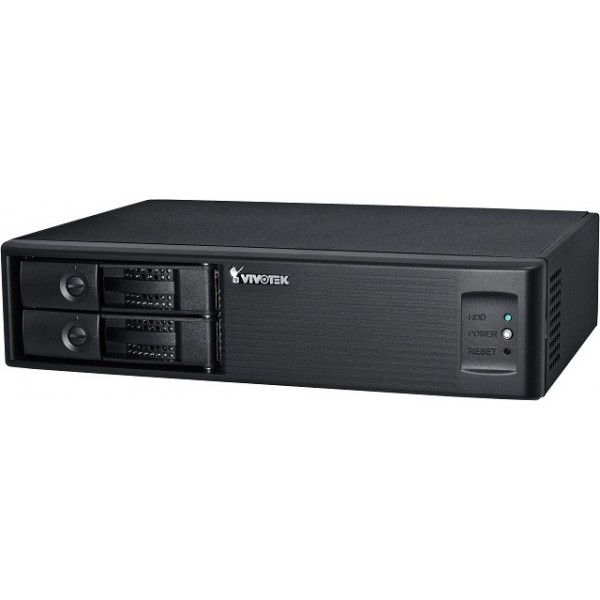

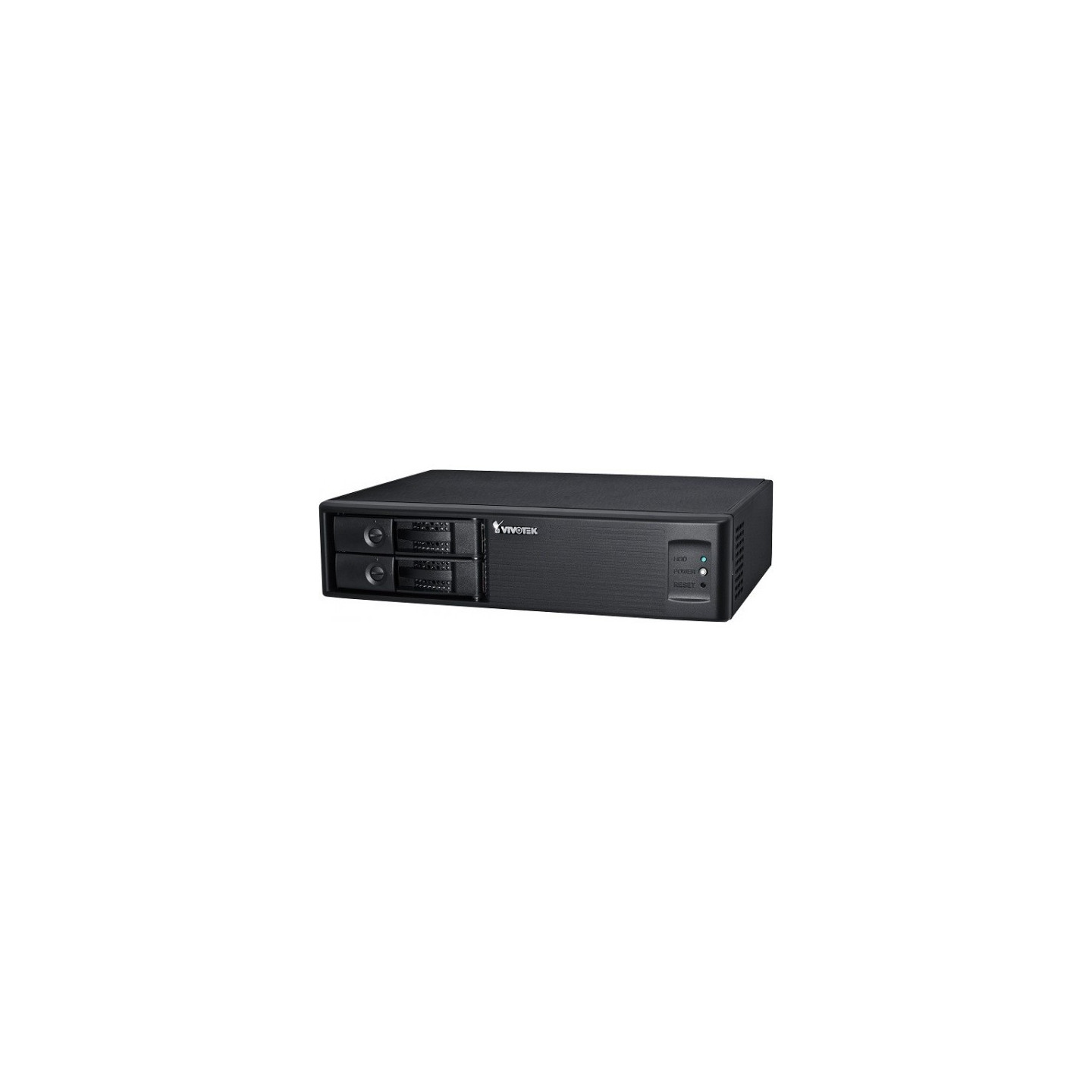

VIVOTEK ND8301 NVR 8 Cámaras IP 2 Bahías
La ND8301 de VIVOTEK es una Grabadora de vídeo para red de 8 canales proyectado para aplicaciones sofisticadas de grabación. Esta grabadora está equipada con un Procesador Intel Atom Dual-core con una velocidad de grabación máxima con robustos 96 Mbps.
Características - Hardware
- Procesador Dual-core Intel AtomTM
- RAID 0,1 para una grabación eficiente y confiable
- Bandeja con 2 compartimientos para discos duros amovibles, máx. 6TB
- Interfaz eSATA externa
- Pantalla local completa para visualización en Full HD
- Diseño de la NVR tipo desktop standalone
- Puertos Ethernet Dual Gigabit
- 4 puertos USB
- Tamaño compacto: 315 mm (A) x 220 mm (P) x 75 mm (A)
Características - Software
- Fácil instalación y configuración (Shepherd/Setup Wizard)
- VAST instalado (LiveClient/Playback)
- Visualización en vivo en tiempo real de 8 canales y Reproducción sincronizada de 4 canales
- SVC/H.264, MPEG-4 y MJPEG
- Múltiples tipos de grabación y fuentes del accionador de eventos
- Múltiples modos de búsqueda de vídeo
- E-map
- Soportado por software de administración central VAST
- Integración completa con cámaras para red VIVOTEK
- Soporte para VIVOTEK iViewer (iOS/Android)
Descarga
System
CPU: Dual-core Intel® processor
RAM: 2GB DDRIII
OS: Windows 7 embedded
Power Restoration: System restart automatically after Power Recovery
System Recovery: Recover operating system after restart every time
channels
8-CH selectable
Storage
2 x 3.5" HDD, up to 8TB
2 x hot-swappable hard disk tray
HDD S.M.A.R.T.(Self-Monitoring Analysis and Reporting Technology)
RAID 0, 1
External eSATA storage
Connectors
1 x VGA for Full HD local display
2 x Gigabit RJ45 Ethernet port
4 x USB 2.0 port
1 x RS232
1 x eSATA
1 x MIC in and line in
1 x line out
Camera Compatibility
Integrates with VIVOTEK & ONVIF network cameras
EasySetup
"Setup Wizard" for network/HDD/camera easy setup
"IW2" for search internal camera
"Shepherd" for duplicating the camera's configuration to multiple cameras
Networking
IPv4, TCP/IP, HTTP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS
Recording
Throughput: Max. 96 Mbps
Recording policy: scheduled (event/continuous modes) and manual recording
Video compression: H.264/MJPEG/MPEG-4
Audio compression: AMR/G.711/G.726/AAC
Resolution: Up to 5-Megapixel recording
Format: 3GP
Auto recycling: buffer size setting, time setting
Activity adaptive recording
Export
Format: AVI/3GPP/EXE
LiveView (Local Display)
Display layout: 1X1, 2X2, 3X3, 4X4, 1+5, 1+12
Rotate
Snapshot
Two way audio control
PiP video control
Stream selectable
Set DO control
Video enhancement
Pan/Tilt/Zoom control of VIVOTEK cameras
Preset location
Auto pan/patrol
Event popup windows
Instant event notification
Display performance:
MJPEG: 16-CH, 30 fps @ CIF
MPEG4: 16-CH, 30 fps @ CIF or 2-CH, 30 fps @ 1080P
H.264: 7-CH, 30 fps @ CIF or 1-CH, 30 fps @ 1080P
Auto stream size
Playback (Local Display)
Display layout: 1X1
Playback mode: play, pause, stop, next/frame, next/previous, speed control
Search mode: browsing, time, event, bookmark
Graphical timeline
Snapshot
Bookmark design
PiP video control
Video enhancement
Log viewer
LiveView (Remote)
Display layout: 1X1, 2X2, 3X3, 4X4, 1+5, 1+12
Snapshot
Pan/Tilt/Zoom control of VIVOTEK cameras
Simple camera and recording settings
Playback (Remote)
Display layout: 1X1
Playback mode: play, pause, stop, speed control
Search mode: browsing, event
Graphical timeline
Event Action Management
Trigger source: motion, temperature, tampering, DI/O, IR, PIR, IVA, video lost, recording error, recording status, substation connection status, storage connection status, storage capacity status, license status, network status & memory status
Actions: email, start recording, move to the preset position, set DO, GSM short message & send CGI command
Security
5 levels of user roles
Multi-level user access with password protection
Device buzzer notification (HDD/network)
Backup
Manual/scheduled backup
Mobile APP Support
VIVOTEK iViewer (iOS/Android)
Dimensions
315 mm (W) X 220 mm (D) X 75 mm (H)
Weight
Net: 2270g without HHD
LED Indicator
1 x power status
1 x HDD status
Approvals
CE, FCC Class B, VCCI, C-Tick
Operating Environments
Temperature: 0°C ~ 40°C ( 32°F ~ 122°F )
Humidity: 20%~95% RH
Warranty
24 months
Language Support
English, French, German, Italian, Spanish, Traditional Chinese, Simplified Chinese, Japanese, Portugal, Czech
