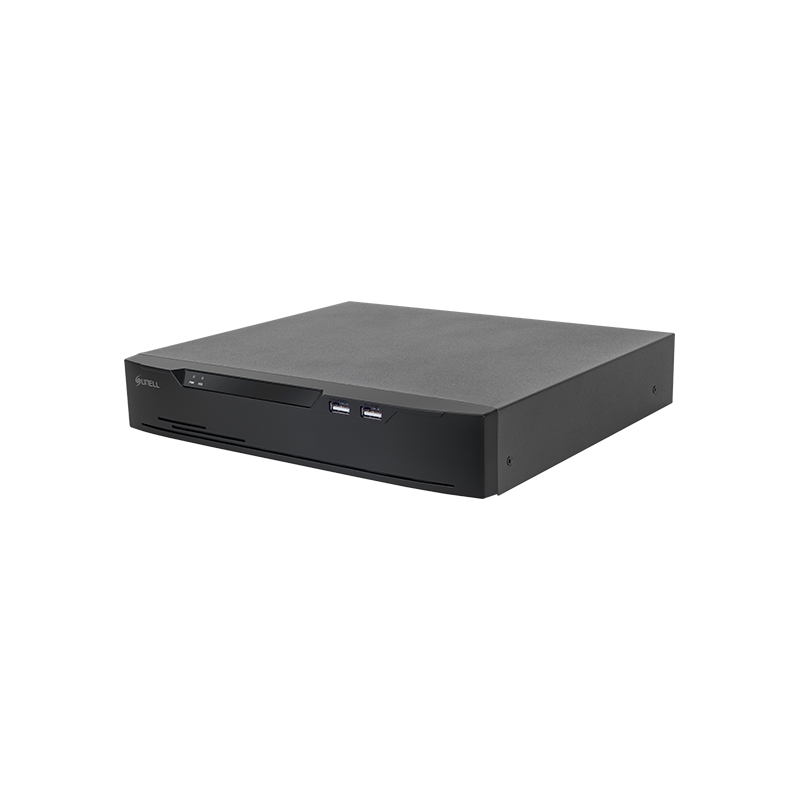

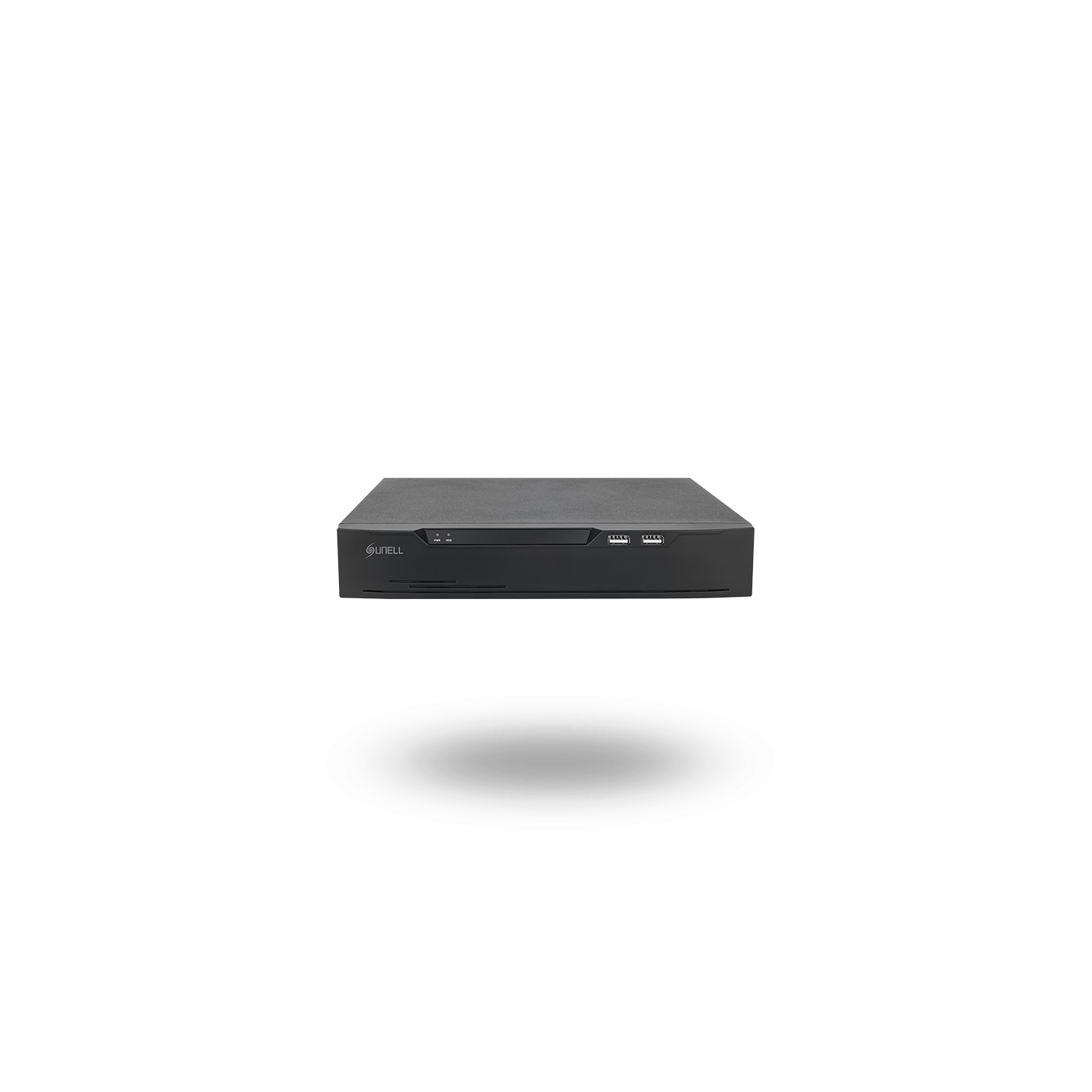

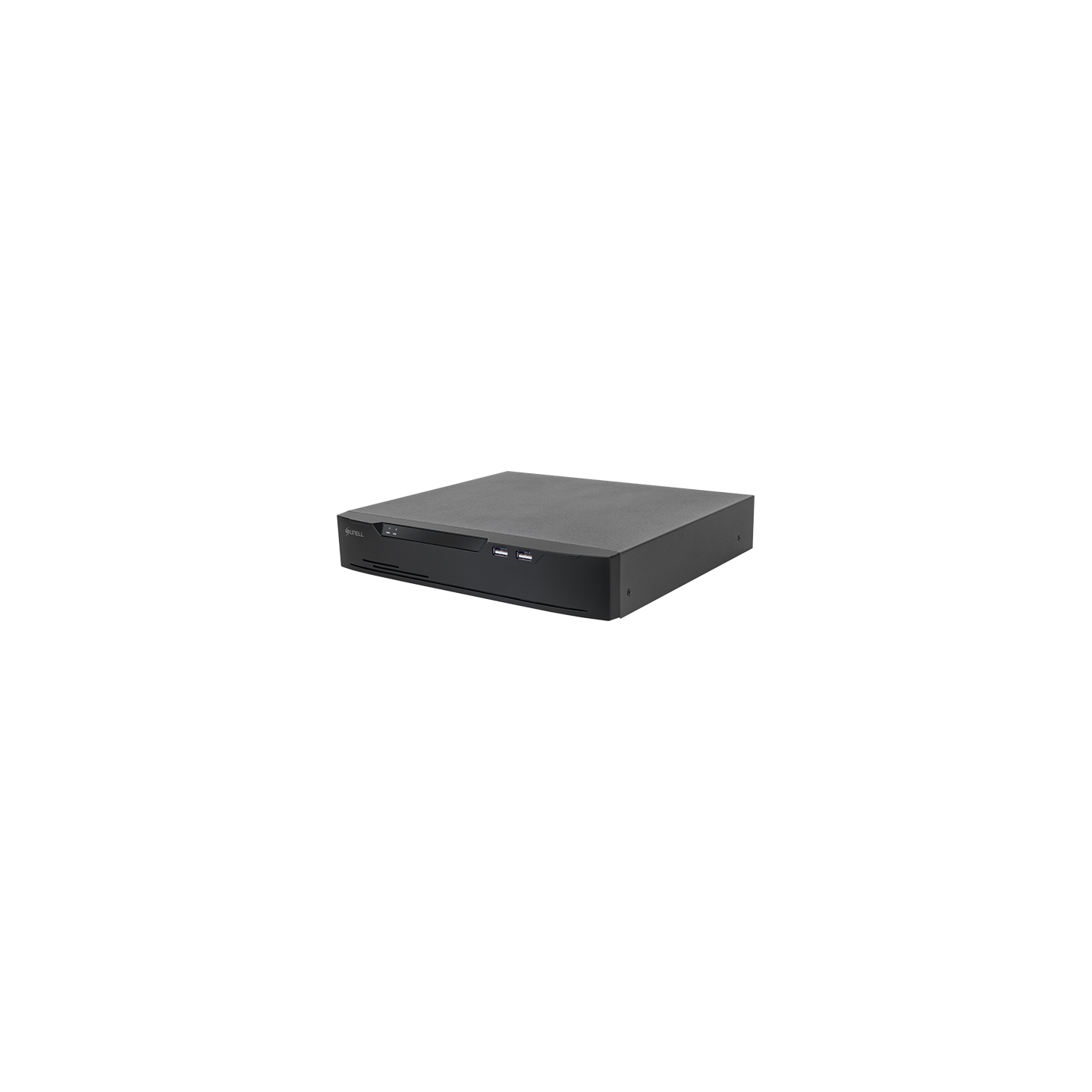

SUNELL SN-NVR3708E1-P8

Video Input

IP Camera Input

8 Channel

Incoming Bandwidth

40 Mbps

Outgoing Bandwidth

40 Mbps

Video Output

HDMI Output

3840×2160, 1920×1080, 1280×1024, 1024×768

VGA Output

1920×1080, 1280×1024, 1024×768

Decoding Capacity

1ch 8MP, 4ch 1080P, 8ch D1@30fps

Dual Stream

Support

Multi-screen Display

1/4/9

Recording

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P,  D1 etc.

Recording Mode

Manual, Schedule (Regular, Continuous), Event

Trigger Events

Motion Detection, Video Loss, IVS

Playback and Backup

Sync Playback

8/4/1

Search Mode

Time /Date, Alarm, Picture grid, Event

Backup Mode

USB Device, Network

Network

Network Function

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE

Remote Users

8 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF, SDK

Storage

HDD

1 SATA interface

Capacity

Up to 8TB for each HDD

Interface

Network Interface

1 RJ-45 (10/100 Mbps)  self-adaptive Ethernet port

PoE

8 Ports (IEEE 802.3af), 48W

Audio Output

1ch Audio output

USB

2 ports (USB 2.0 × 2)

HDMI

1

VGA

1

General

Power Supply

DC48V/1.35A

Power Consumption

< 5 W (without HDD)

Operating Conditions

-10 °C ~ 50 °C (14 °F ~ 122 °F)

Storage Conditions

Less than 90% RH

Certifications

CE/FCC

Dimensions

255 × 237 × 47.5 mm (10.04 × 9.33 × 1.87 inch)

Net Weight

1 kg (2.2 lb) without HDD
