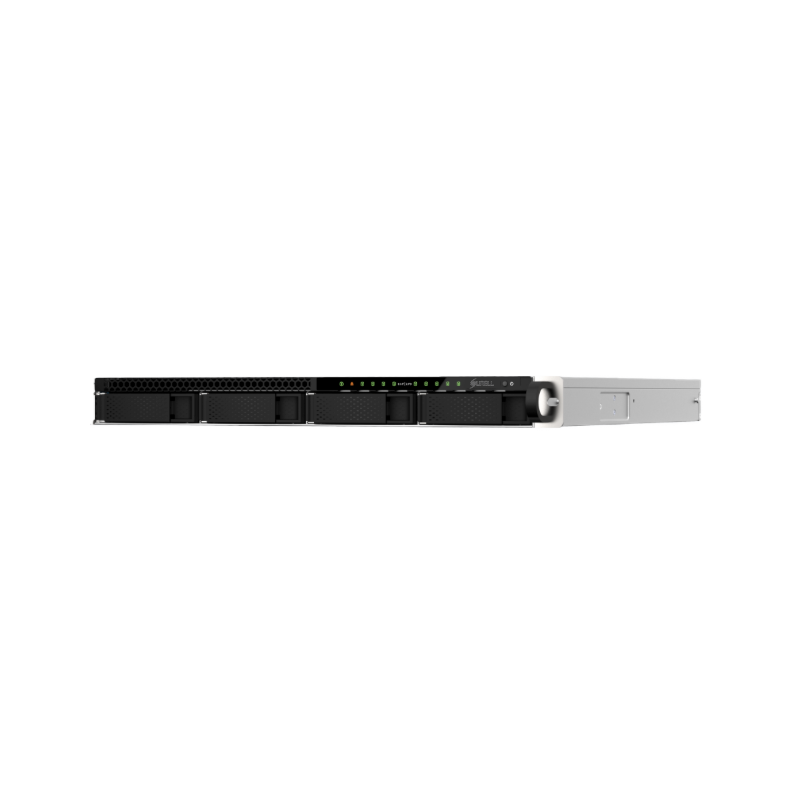

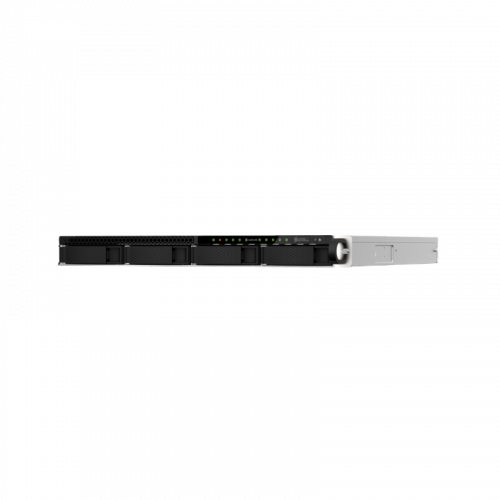

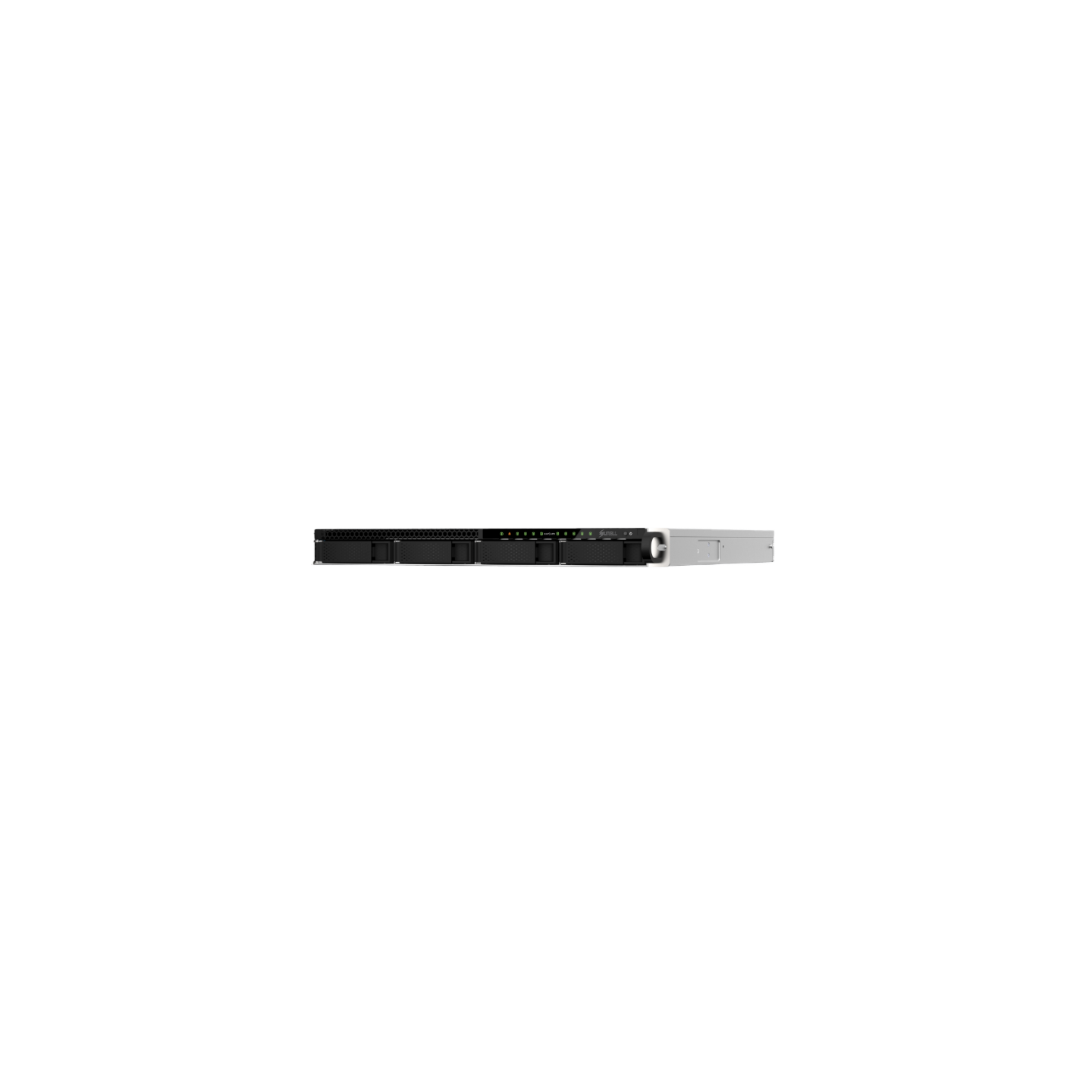

SUNELL SN-NVR7132E4-J(III)
NVR 32 canales, 4 bahías con IA
- Acceso a cámaras IP de hasta 32 canales (cámaras compatibles con ONVIF de Sunell y de terceros)
- Ancho de banda entrante/saliente de hasta 300 Mbps
- Capacidad de decodificación de hasta 1 canal a 12 MP/4 canales a 8 MP/8 canales a 4 MP/16 canales a 1080P/32 canales a D1
- Admite detección de máscaras, reconocimiento facial y reconocimiento de múltiples objetivos
- Admite algunas cámaras especializadas, incluidas cámaras de conteo de personas, cámaras ANPR, cámaras ojo de pez, cámaras panorámicas y cámaras térmicas
- Admite desobstrucciones esféricas de ojo de pez y vinculación de alarma VCA
- Protección perimetral de hasta 4 canales
- Admite 1 HDMI
- Admite RAID 0/1/5/6/10 y N+1 hot spare
Descarga
Video Input |
|
IP Camera Input |
32 Channel Capacity / 16 - Channel Hardware License Included |
Incoming Bandwidth |
300Mbps |
Outgoing Bandwidth |
300Mbps |
Video Output |
|
HDMI 1 Output |
3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768 |
Different Source Output |
Support |
Decoding Capacity |
1ch 12MP, 4ch 8MP, 8ch 4MP, 16ch 1080P, 32ch D1 |
Dual Stream |
Support |
Multi-screen Display |
1/4/8/9/16/32 |
AI Recognition |
|
Face Comparison |
Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity) |
Multi-objective |
Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity) |
Smart Search |
Time, Properties, Pictures, License plate |
Trigger Events |
Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc. |
Recording |
|
Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc. |
Recording Mode |
Manual, Schedule (Regular, Continuous), Event |
Trigger Events |
Motion Detection, Video Loss, Alarm in, IVS |
Playback and Backup |
|
Sync Playback |
16/9/4/1 |
Search Mode |
Time /Date, Alarm, Picture grid, Event |
Backup Mode |
USB Device, Network |
Alarm |
|
General Alarm |
Motion Detection, Video Loss, Alarm in, Alarm out |
Intelligent Analysis (By Camera) |
Smoking Detection, Smoke and Fire Detection, Fire Spot Detection, Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-way, Illegal Parking, People Counting, Smart motion detection, Enter Area, Leave Area, etc. |
Abnormal Alarm |
Disk Alarm, IP Address Conflict, Network Disconnect |
Intrusion Detection (By NVR) |
4-ch, support the accurate detection of human and vehicle |
Network |
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
Remote Users |
8 users |
P2P |
Support |
Interoperability |
ONVIF, SDK, CGI |
Storage |
|
ANR |
Support |
Disk Group |
Support |
RAID |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
Interface |
|
HDD Interface (*) |
4 SATA interfaces, up to 16TB capacity for each disk configurable. Default 1 8TB SATA Enterprise HDD. |
Network Interface (*) |
2 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
HDMI |
1 |
Audio In/Out |
1/1 |
USB Interface |
Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0 |
Reset Button |
On-board reset button |
Mouse |
Included |
General |
|
Random Access Memory (RAM) |
16 GB |
Security |
FIPS 140 |
Power Supply (*) |
220V AC - 50Hz - 3.5A |
Power Consumption |
< 100 W (without HDD) |
Operating Conditions |
-10 °C to 50 °C (14 °F to 122 °F) |
Storage Conditions |
Less than 90% RH |
Certifications |
CE/FCC |
Dimensions (L×W×H) |
560 × 437.5 × 44.5 mm (22.05 × 17.22 × 1.75 inch) |
Net Weight |
7.3 kg (16.09 lb) without HDD |
Warranty |
5 Years |
