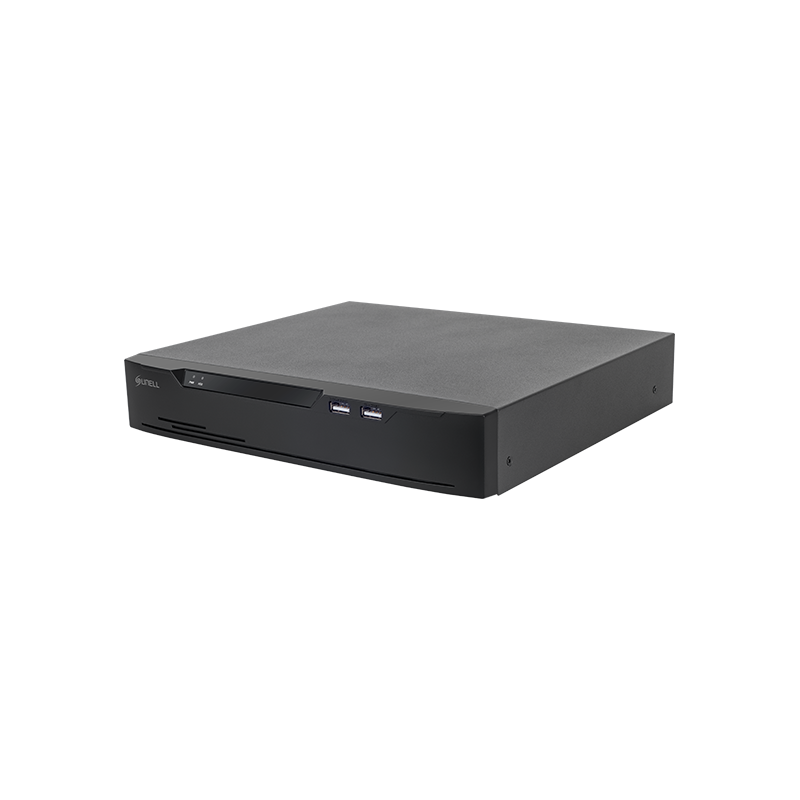

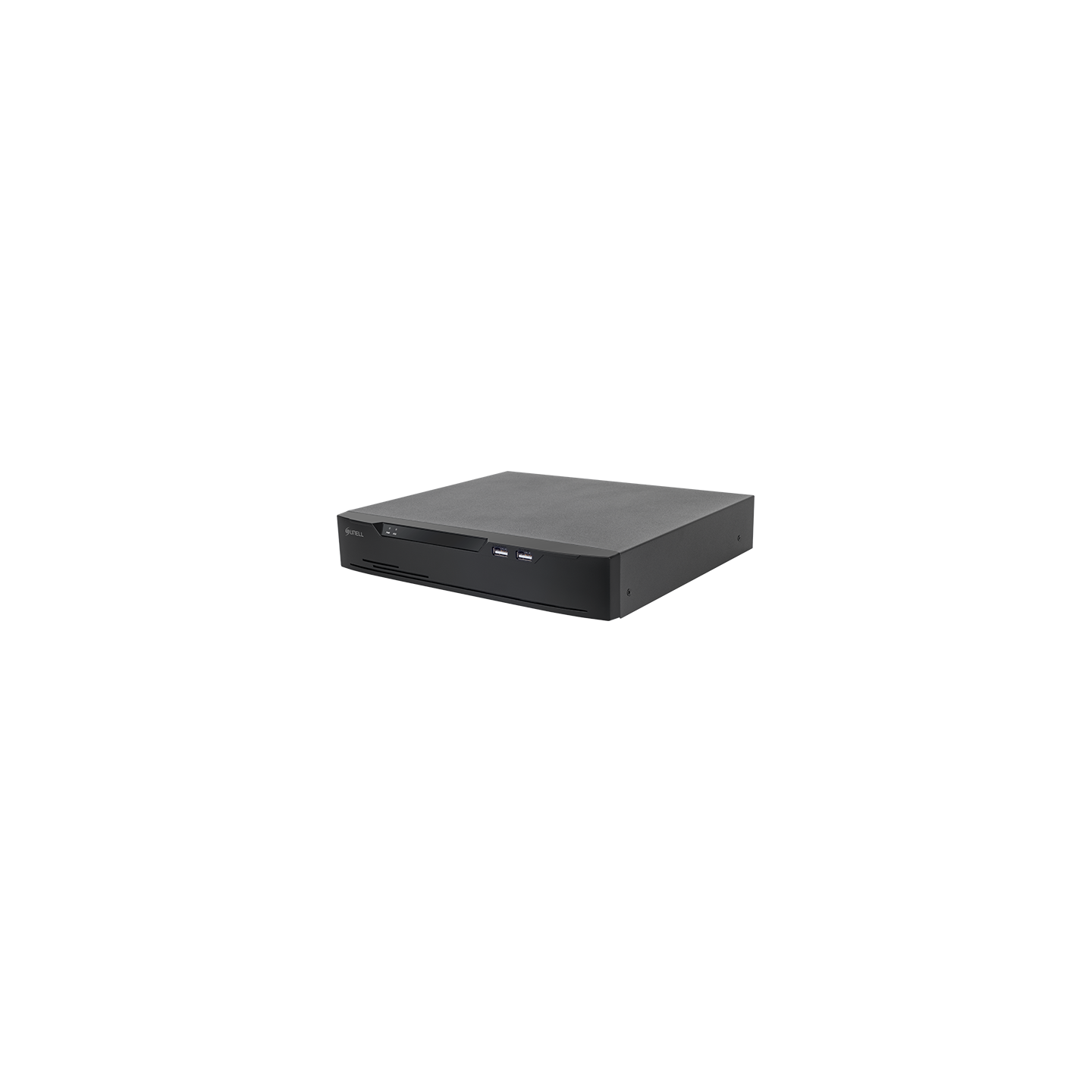

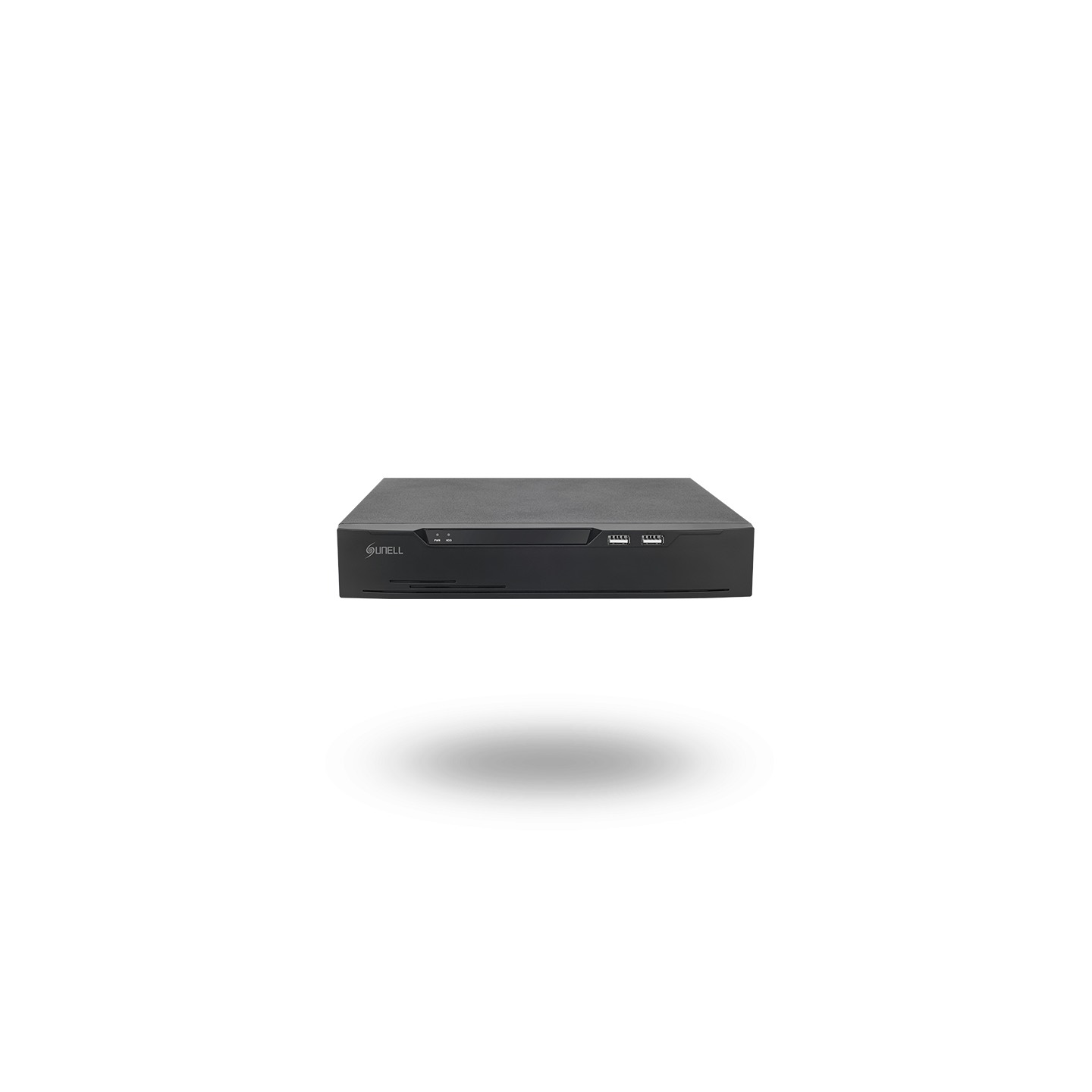

SUNELL SN-NVR3504E1-P4

Video Input

IP Camera Input

4 Channel

Incoming Bandwidth

40 Mbps

Outgoing Bandwidth

40 Mbps

Video Output

HDMI Output

3840×2160,1920×1080, 1440×900, 1280×1024

VGA Output

1920×1080, 1440×900, 1280×1024

Decoding Capacity

1ch 8MP, 4ch 1080P@30fps

Dual Stream

Support

Multi-screen Display

1/4

Recording

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P,  D1 etc.

Recording Mode

Manual, Schedule (Regular, Continuous), Event

Trigger Events

Motion Detection, Video Loss, Alarm in, IVS

Playback and Backup

Sync Playback

4/1

Search Mode

Time /Date, Alarm, Picture grid, Event

Backup Mode

USB Device, Network

Alarm

General Alarm

Motion Detection, Video Loss, IVS, Alarm in, Alarm out

Abnormal Alarm

Disk Alarm, IP Address Conflict, Network Disconnect

Network

Network Function

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE

Remote Users

8 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF, SDK

Storage

HDD

1 SATA Ports, up to 8TB for each HDD

Interface

Interface

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

PoE

4 Ports (IEEE 802.3af), 32W

HDMI

1

VGA

1

Audio I/O

1/1

Alarm I/O

4/1

USB

3 ports (USB 2.0 × 3)

General

Power Supply

DC48V/1.25A

Power Consumption

< 5 W (without HDD)

Operating Conditions

-10 °C ~ 50 °C (14 °F ~ 122 °F)

Storage Conditions

Less than 90% RH

Certifications

CE/FCC

Dimensions

255 × 237 × 47.5 mm (10.04 × 9.33 × 1.87 inch)

Net Weight

0.9 kg (1.98 lb) without HDD
