- Acceso a cámaras IP de hasta 32 canales
- Ancho de banda entrante/saliente de hasta 320 Mbps
- Capacidad de decodificación de hasta 1 canal a 12 MP/4 canales a 4 MP/9 canales a 1080P/16 canales a D1/32 canales a D1
- Compatible con detección de máscaras, reconocimiento facial y reconocimiento de múltiples objetivos
- Compatible con algunas cámaras especializadas, incluidas las cámaras de conteo de personas, la cámara ANPR, la cámara ojo de pez, la cámara panorámica y la cámara térmica
- Compatible con dewarping de ojo de pez y conexión de alarma VCA
- Protección perimetral de hasta 4 canales
- Compatible con 2 interfaces HDMI y 1 VGA
- Compatible con RAID 0/1/5/6/10 y N+1 hot spare
Detalle de productos
Video Input |
|
|
IP Camera Input |
32 Channel |
|
Incoming Bandwidth |
320 Mbps |
|
Outgoing Bandwidth |
320 Mbps |
Video Output |
|
|
HDMI 1 Output |
3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768 |
|
HDMI 2 Output |
1920 × 1080, 1280 × 1024, 1024 × 768 |
|
VGA Output |
1920 × 1080, 1280 × 1024, 1024 × 768 |
|
Different Source Output |
Support |
|
Decoding Capacity |
1ch 12MP, 4ch 4MP, 9ch 1080P, 16ch D1, 32ch D1 |
|
Dual Stream |
Support |
|
Multi-screen Display |
1st Screen: 1/4/8/9/16/32/36 2nd Screen: 1/4/8/9/16 |
AI Recognition |
|
|
Face Comparison |
Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity) |
|
Multi-objective |
Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity) |
|
Smart Search |
Time, Properties, Pictures, License plate |
|
Trigger Events |
Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc. |
Recording |
|
|
Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc. |
|
Recording Mode |
Manual, Schedule (Regular, Continuous), Event |
|
Trigger Events |
Motion Detection, Video Loss, Alarm in, IVS |
Playback and Backup |
|
|
Sync Playback |
16/9/4/1 |
|
Search Mode |
Time /Date, Alarm, Picture grid, Event |
|
Backup Mode |
USB Device, Network, eSATA |
Alarm |
|
|
General Alarm |
Motion Detection, Video Loss, Alarm in, Alarm out |
|
Intelligent Analysis (By Camera) |
Smoking Detection, Smoke and Fire Detection, Fire Spot Detection, Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-way, Illegal Parking, People Counting, Smart motion detection, Enter Area, Leave Area, etc. |
|
Abnormal Alarm |
Disk Alarm, IP Address Conflict, Network Disconnect |
|
Intrusion Detection (By NVR) |
4-ch, support the accurate detection of human and vehicle |
Network |
|
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
|
Remote Users |
8 users |
|
P2P |
Support |
|
Interoperability |
ONVIF, SDK, CGI |
Storage |
|
|
ANR |
Support |
|
Disk Group |
Support |
|
RAID |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
Interface |
|
|
HDD Interface |
4 SATA interfaces, up to 16TB capacity for each disk |
|
Network Interface |
2 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
|
eSATA |
1 eSATA Interface |
|
HDMI |
2 |
|
VGA |
1 |
|
Audio In/Out |
1/1 |
|
Alarm In/Out |
16/4 |
|
USB Interface |
Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0 |
|
RS-485 Interface |
1 |
|
RS-232 Interface |
1 |
|
Reset Button |
On-board reset button |
General |
|
|
Power Supply |
100 to 240VAC |
|
Power Consumption |
< 15 W (without HDD) |
|
Operating Conditions |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Storage Conditions |
Less than 90% RH |
|
Certifications |
CE/FCC |
|
Dimensions |
440 × 368.8 × 70 mm (17.32 × 14.52 × 2.76 inch) |
|
Net Weight |
4.65 kg (10.25 lb) without HDD |
En la misma categoría
QNAP

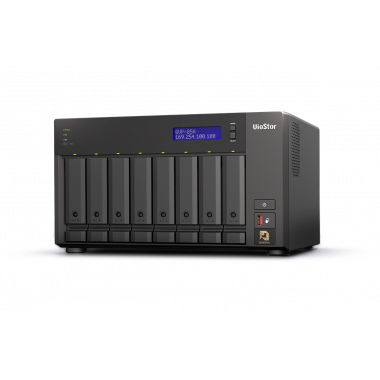

QNAP QVP-85B
